2017新款小型移动淘金车
【小型移动淘金车简介】The Introduction
本套淘金设备为小型移动式淘金车,是青州冠诚重工机械有限公司独立设计、研发制作的小型淘金设备,通过售后服务、用户回访等渠道不断完善改进,现已经成为一种先进成熟的小型移动淘金设备;
该移动淘金车可以使用小型挖掘机、装载机等多种上料方式,适用于沙金矿、岩金尾矿等大部分地选金场合。
The smart movable trommel screen gold mining machine is designed&manufactured by ourselves,improving our technology by service aftersales and advice of customer etc,now it’s a very machines in china.
This type of machine can be feed by wheel loader or excavators,which is widely used in gravel sand mine,tailings of rock gold mine etc.

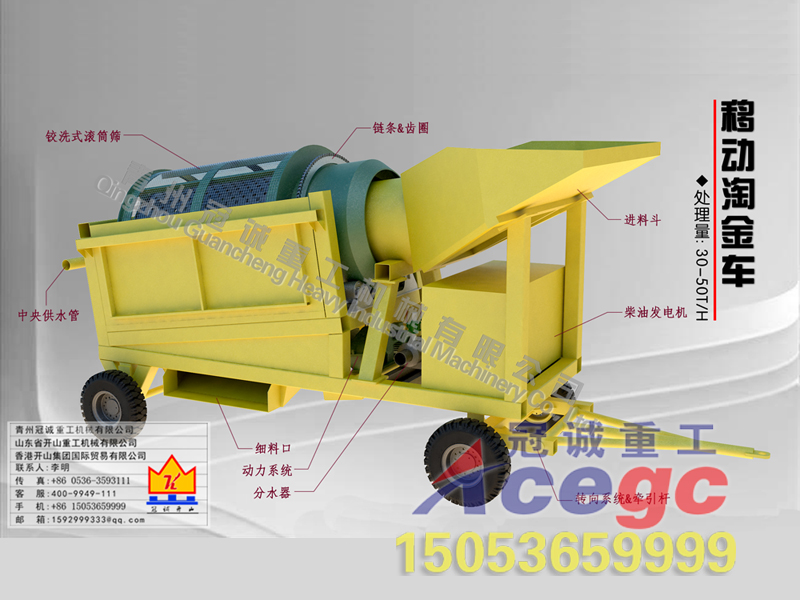

【该移动淘金车特点】
1、上料方式可以使用小型挖掘机或装载机等多种上料方式。
2、移动灵活方便:采用可转向设计,可以原地180度转向。
3、轮胎全部采用实心叉车胎,耐磨耐用。

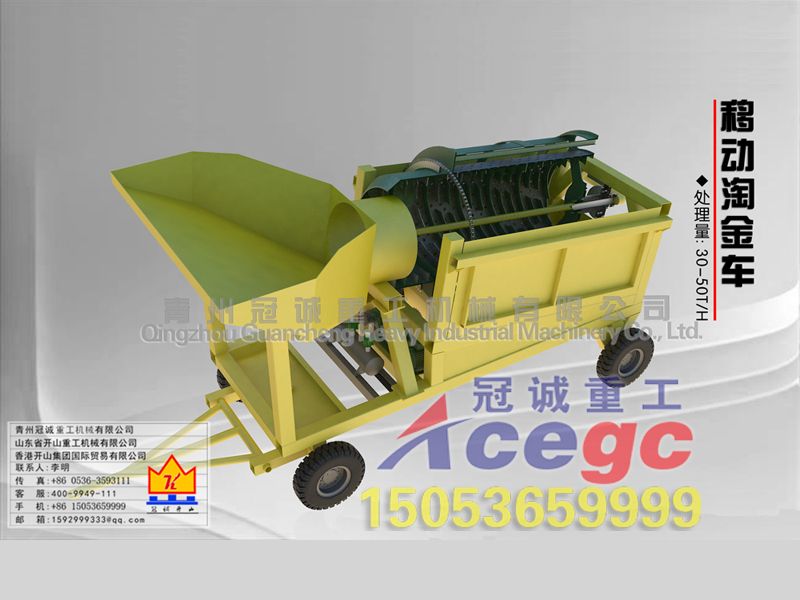

4、滚筒筛内部增加了多条铰刀,增加了约一倍物料筛选行程,极大的增加了铰洗、筛分工作效率。
5、针对供水系统进行了优化:
上料斗内部冲水负责首次冲洗物料并且推送物料进入滚筒筛内;
滚筒筛中央冲水负责对物料进行主要的冲洗工作;
滚筒筛侧冲水负责冲洗滚筒筛外部细筛网,防止堵孔。
6、集成度高,本辆移动淘金车集成了铰洗、筛分功能、分水器、柴油发电机于一体,只需要外接供水管道便 可正常工作。
7、扩展性强:可以附加振动溜槽/鼓动溜槽、离心机等选金设备提高回收率。
Features
It can be easily feed by excavators or other types
It can be easily moved&circled in 180 degree
The Tyre we are using forklift type which cen be usd in a long time
The inner of trommel screen increased numbers of reamer so it can be worked in high effciency
Water washing: washing on top of hopper the then pushing the mixture to flow to the screen,washing inmiddle of screen which is the most principal,washing in screen outside it can clean the materila carefully and invoid the gamblingplug.
The movable gold trommel screen machine contained the reamer separating,water separating and diesel power,it works only need connecting the water
It can be works with centrifuge concentrator,sulice,gold chute etc.
【淘金车技术参数】
处 理 量: 80-100吨/小时
Capacity: 80-100ton/h
上料方式: 建议使用小型挖掘机
Feeder: excavator or other
大入料: 直径(diameter)≦350mm
Mixture size:
用电功率: 4Kw-6
Power:
减 速 机: 350#
Speed reducer
水 泵: 7.5Kw
Water pump
耗 水 量: 100m3/h
Water Needed
发 电 机: 柴油发电机20Kw
Diesel Motor
铰 洗 筛: 内径1.3米,外径1.6米,净筛网长度1.8米
Reamer washing trommel screen(inner diameter:1.3m Outside diameter:1.6m Length:1.8m)
轮 胎: 三轴6条实心轮胎
Tyre: 3axles&6pieces tyre
牵引速度: ≦15Km/h
Driving speed
小转弯半径: 4.8M
Min moving radius
大中小型移动式淘金车价格?咨询移动式淘金车厂家青州冠诚重工机械有限公司,承接大中小型移动式淘金车加工,出口业务.型号多,规格全,价格低.电话:+86 15053659999 15653473333李明
